Product Overview

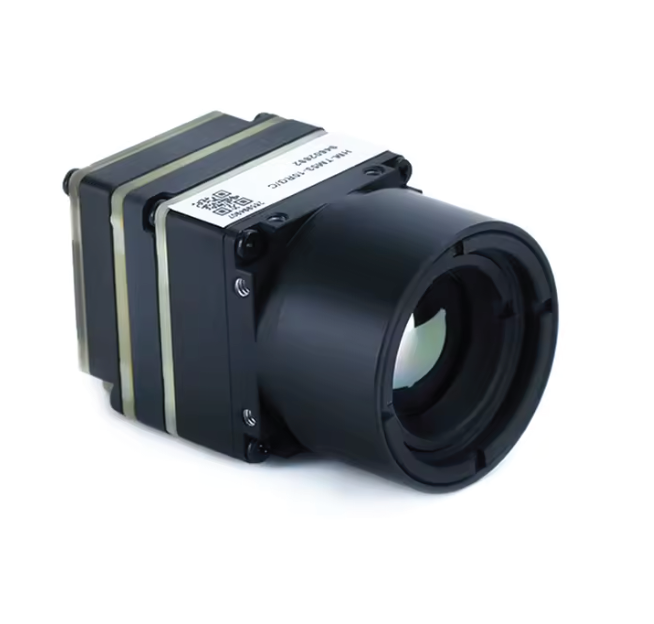

The Mass Zero Pro is a high-performance thermal imaging camera specifically designed for unmanned aerial vehicles (UAVs) and drone applications. Built on the proven Mass Zero thermal core technology, this camera delivers exceptional thermal sensitivity and real-time data processing for critical applications where thermal detection is essential.

PLEASE BE AWARE WE ARE AWAITING INITIAL STOCK. WE EXPECT STOCK TO ARRIVE IN MID SEPTEMBER SO ANTICAPITE DELIVER TIMES TO BE AFTER THAT DATE

Key Specifications

Thermal Performance

• Resolution Options: 640×512 pixels

• Thermal Sensitivity: 40mK (0.04°C) at 25°C

• Spectral Range: 8-14μm (long-wave infrared)

• Frame Rate: 9Hz continuous, 25Hz burst mode

• Temperature Range: -40°C to +150°C (-40°F to +302°F)

• Accuracy: ±2°C or ±2% of reading (whichever is greater)

Hardware Features

• Dimensions: 60×35×20mm (2.36×1.38×0.79 inches)

• Weight: 45g (1.59 oz)

• Power: 5V-16V DC, 2W typical consumption

• Interface: UART Serial (115200 baud, 8N1)

• Device Address: 0x36 (configurable)

• Operating Temperature: -20°C to +70°C

• Storage Temperature: -40°C to +85°C

Advanced Features

Image Processing

• Digital Enhancement: 0-100% adjustable (default: 50%)

• Spatial Denoising: Advanced noise reduction algorithms

• Temporal Denoising: Frame-to-frame noise suppression

• Bad Pixel Removal: Automatic detection and compensation

• Vignetting Correction: Lens distortion compensation

Color Palettes

• White Hot: Traditional thermal imaging (default)

• Black Hot: Inverted thermal display

• Rainbow: Full spectrum color mapping

• Iron Red: Enhanced contrast for hot objects

• Ice Fire: Blue-red temperature gradient

• Custom Palettes: 14 total color schemes available

Camera Controls

• Digital Zoom: 1x, 2x, 4x, 8x magnification

• Mirror Modes: Horizontal, vertical, and central mirroring

• Brightness/Contrast: 0-100% adjustable

• Auto Shutter: Time-based, temperature-based, or combined

• Manual FFC: On-demand flat field calibration

Flight Controller Integration

INAV Support

• Native Integration: Built-in support for INAV flight controllers

• MSP Protocol: Custom messages for thermal data transmission

• OSD Elements: Real-time thermal overlay on video feed

• Parameter Control: Full CLI configuration system

• Task Scheduler: 10Hz update rate integration


Transmitter Control

• Channel Mapping: Bind AUX channels for real-time control

• Zoom Control: Adjust magnification during flight

• Palette Selection: Switch color schemes on-the-fly

• FFC Trigger: Manual calibration activation

• Parameter Adjustment: Brightness, contrast, enhancement


Ardupilot and BetaFlight support coming soon.

Applications

Search & Rescue

• Person Detection: Locate individuals in low-visibility conditions

• Area Scanning: Efficient coverage of large search areas

• Night Operations: 24/7 search capability

• Emergency Response: Rapid assessment of disaster areas

Firefighting & Safety

• Hotspot Detection: Identify fire sources and spread patterns

• Safety Monitoring: Monitor firefighter safety and equipment

• Damage Assessment: Evaluate structural integrity post-fire

• Prevention: Early detection of potential fire hazards

Industrial Inspection

• Equipment Monitoring: Detect overheating components

• Building Surveys: Energy efficiency and insulation assessment

• Preventive Maintenance: Early detection of potential failures

• Quality Control: Thermal signature analysis

Agricultural & Environmental

• Crop Monitoring: Detect irrigation issues and disease

• Wildlife Tracking: Monitor animal movements and health

• Environmental Assessment: Temperature mapping and analysis

• Research Applications: Scientific data collection

Technical Support

Documentation

• User Manual: Complete setup and operation guide

• Integration Guide: Flight controller compatibility

• Troubleshooting: Common issues and solutions

Package Contents

• Mass Zero Pro thermal camera module

• 5-pin JST connector cable (UART + Power + video)

• Mounting bracket with vibration isolation (TPU)

• Quick start guide and documentation

• Spare mounting hardware (m2)

Compatibility

• Flight Controllers: INAV, ArduPilot (Coming Soon), Betaflight (Coming Soon)

• UAV Types: Multi-rotor, fixed-wing, VTOL, ground vehicles

• Power Systems: 5-16v required

The Mass Zero Pro represents the next generation of drone thermal imaging, combining exceptional thermal performance with seamless flight controller integration. Whether you're conducting search and rescue operations, industrial inspections, or environmental research, this camera provides the thermal intelligence you need to operate safely and effectively in any conditions.
